Fusion Splicer from China manufacturer - DOWELL INDUSTRY GROUP LIMITED

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YH-1608

Production Capacity: 5000pcs/month

Delivery Date: 7 days after confirmation

Function: Fiber Splicing

Means of Transport: Ocean,Land,Air;Express

Packing: 4pcs/box

Brand Name: YH

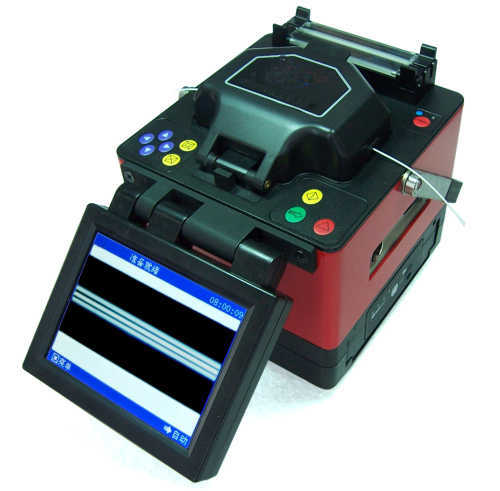

Digital Single Fiber Fusion Splicer

Digital Fusion Splicer

Description:

●High Definition LCD display
●PAS Technology
●Core or cladding alignment
●Double heaters
●4 display modes
●8 seconds splice time
●Lithium battery
●Store 8000 groups of splice results
●USB Interface

Specification:

Applicable fibers
SM, MM, NZ-DS(G655), EDF and others
Average splice loss
0.02dB(SM)\0.01dB(MM). 0.04dB(NZDS)
Return loss
≥60dB
Tension test
2.0N(200gf)(Standard)
Protection sleeve length
20mm, 40mm, 60mm and other series micro protection sleeves
Splicing program
80 groups
Language
English, Chinese, Korean, Russian, Spanish , French, German,
Portuguese and others
Environment conditions:
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment
-40~ +80℃ (temperature) , 0~95%RH (humidity)
Power supply
AC adaptor: 85~260V input voltage
Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat
Dimensions/Weight
140(D)×150(W)×160(H)mm/2.8kg

Standard Package:

• Main body

• Internal Battery

• Charger

• Spare Electrodes

• Cooling Tray

• Manual Instruction

• Carry Case

• Fiber Cleaver

• Fiber Stripper

• AC Adaptor

• AC Power Cord
