Side view of 3M BRCP Integrated Splitter Block IDC

Working Instruction of 3M BRCP Integrated Splitter Block IDC

3M XDSL Splitter Block BRCP-SP

Mechnical specifications:

48-port splitter block-         Hight:135mm        width: 133mm       Depth: 143mm

Wire range IDC contacts-   0.4mm-0.8mm (26AWG to 20AWG)

Plastics:                       Thermoplastic

Contacts:                       Bronze, tin (Sn) plating

Electrical specification:

Insulation resistance:             > 1000M Om

Contact resistance:                 < 10mOm

Dielectric strength:                  3000V rms, 60Hz AC

High voltage surge:               3000V DC surge

Transmission specification:

Insertion loss:      <0.01dB to 2.2MHz     <0.02dB to 12MHz   <0.04dB to 30MHz

Return loss:          >57dB to 2.2MHz      >52dB to 12MHz    >43dB to 30MHz

Crosstalk:            >66dB to 2.2MHz      >51dB to 12MHz    >44dB to 30MHz

Environment specification:

Operating temperature:                -10°C to 60°C

Storage temperature:                  -40°C to 90°C

Flammability rating:                    UL94 V-0 material used

Production Process of 3M XDSL Splitter Block BRCP-SP




Our 3M BRCP Integrated Splitter Block 48 Port IDC has passed testing by some countris'Telecom company such as Argentina, Brazil, Venezuela...

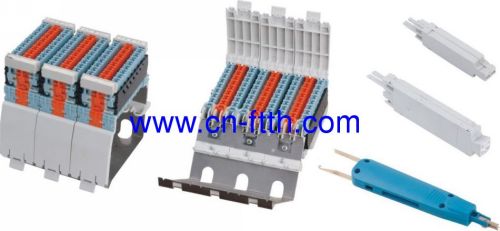

Yuhui company also supply the accessessories for the 3M BRCP Integrated Splitter Block 48 Port IDC,
Such as: Integrated Protector, Single Line Splitter and Bridging Module and Punch down Tool.

         Our Integrated Splitter Block is good in quality and competitive in price. We manufacture kinds of Networking accessories with OEM, ODM service.
          If you want more detailed information of this product or related problems, please contact with us feel free, we will give you the best solution in 24 hours.
